Plastic Straw Machine
MQ – Unicorn of straw machine!
What straws have you seen? How are these straws made?
PP plastic straw is the most popular on the market, which is associated with cola straw and cold drink straw! Of course, paper straws are also very common. Because they are environmentally friendly, people are more willing to accept them. But when they contact with water, they will become soft and have no hardness, and they are easier to bend when carried. Of course, in order to be more environmentally friendly, biodegradable straw has combined the two. PLA straw machine has also received a lot of attention.

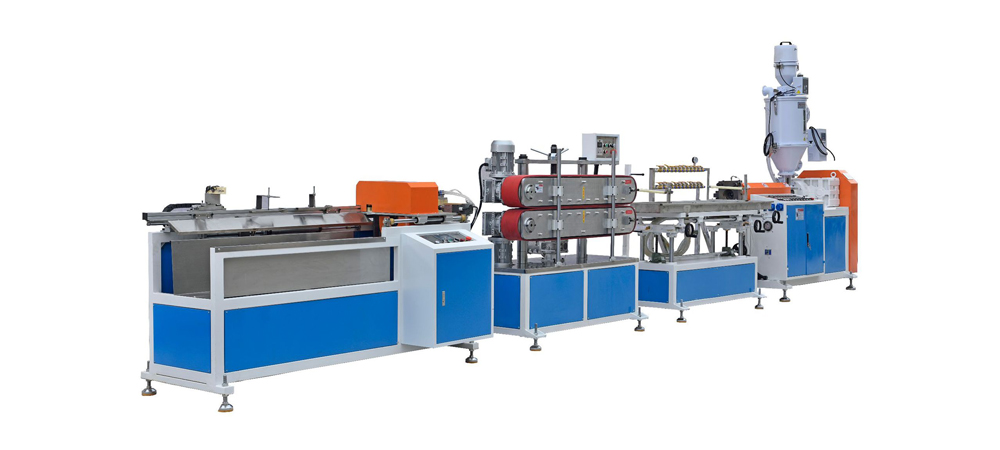

The straw extrusion production line is composed of die, vacuum shaping and cooling device, traction device, rotary cutting device or winding device, etc. It has a variety of production lines, such as multi-color coextrusion, tricolor coextrusion, bicolor coextrusion and monochrome extrusion.
The products have a wide range of applications: beverage straws, ice cream bars, sugar bars, etc. in the food industry;
Other industrial applications: refill, pen holder; Nozzle straw, cotton swab stick, medical tube, various toy tubes, threading tubes, conduits, brake tubes, etc. and other small profiled materials for industrial applications.
This production line is easy to operate, only one person is required to operate the whole production line
Various incisions: 90 °/90 °, 90 °/45 °, 90 °/60 °, 45 °/45 °, 60 °/60 °
Stable output, wide range of colors available: Color/Colors: monochrome, bicolor, tricolor or polycolor straight color bar or spiral color bar.
Straw Machine output & model :
| Model | Output | Power | Diameter | Angle |
| MSSJ50 | 20~30kg/h | 16kw | 2~13mm | 45° 60° 90° |
| MSSJ65 | 20~30kg/h | 20kw | 2~13mm | 45° 60° 90° |
How to ensure machine quality
The main electrical components of our machine are from Schneider/Siemens, and the bearings are from N T N or N SK. PL C also comes from famous brands. It can ensure that the machine has a long service life and high output. All our machines have been tested for a long time and have been strictly checked before delivery.
Steel with high hardness and wear resistance shall be used, and food tank shall be made of 304 stainless steel.

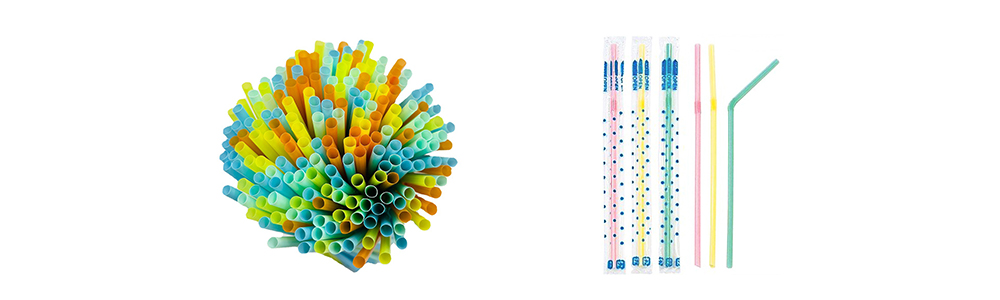

Packaging of straw
There are different kinds of straws for subsequent packaging.
There are combined packing machines, independent single packing machines, bagged, boxed, etc

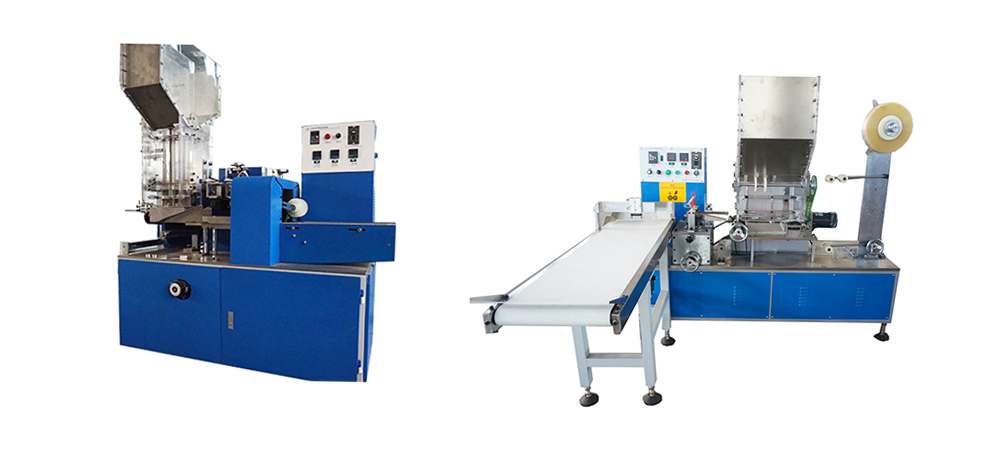

The whole packing machine is composed of drive, conveyor, film placement, feeding placement, bag maker, middle seal traction device and cross cutting device. The straw can be packed with film or paper. And you can customize and print the company LOGO or pattern in single or double colors.
Multi piece packaging pillow type packaging is especially suitable for packaging with more than 15 pieces. The production speed can replace the manual operation of more than 10 people, and the packaging appearance is beautiful. Save material and personnel costs.
characteristic:
Filling, bagging and packaging of multiple straws shall be completed at one time.
Automatic counting can facilitate secondary packaging.
Packaging speed is adjustable.
The number of packages can be adjusted from 2 to 50, and the packaging length can be adjusted steplessly.
For more details, please contact us.
