Plastic Sheet Machine
Products that are particularly common in the plastics industry: sheet and laminating. Sheet main machine production capacity and custom requirements can be contacted. Top 10 large-scale machinery exports in 2022. Build machines with quality and service.
In PET sheet production, we prefer direct and efficient operations. Conventional pre-drying procedure has been completely removed from the whole process. Whatever the combination, 100% rPET pellets or flakes , or mixture of them, our system can handle it with ease.
Where do we need sheet?
It can be suitable for PP,PE,PS,PC,ABS,PMMA,PET,PLA,PVDF sheet production.

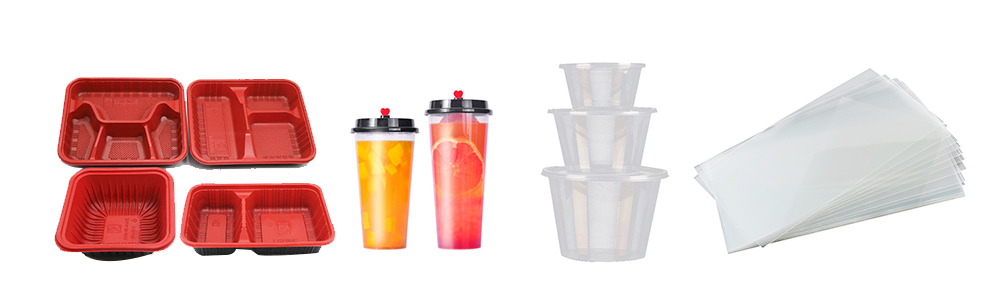

Through plastic granules, Production of plastic sheet, used for decoration, food packaging materials, industrial and other fields. Suitable for all kinds of raw materials, common PP PE PET PLA PS and so on. The most common end products are transparent fruit boxes, plates, disposable lunch boxes, and so on.

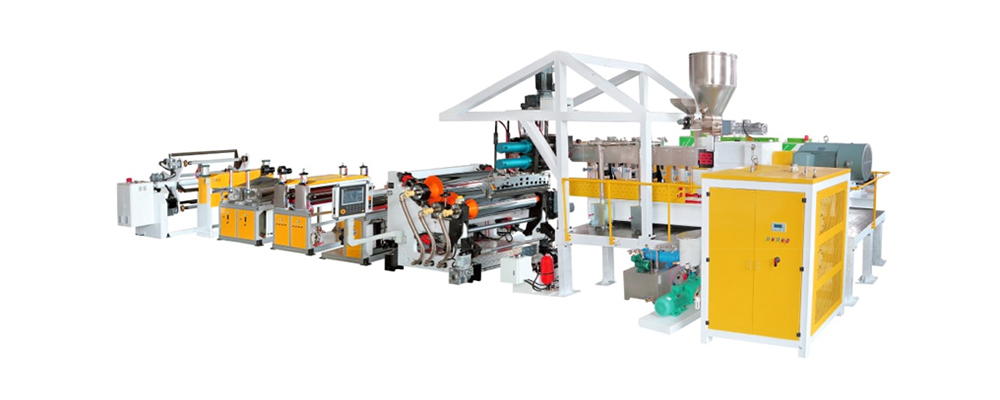

Our sheet machine:
We adopts parallel twin-screw design, specially designed for polyester PET, with venting,uniform plasticization, oblique three-roll calender design and L-type calender design.The roller temperature can be adjusted by the mold temperature machine,and the product has good toughness. It has high transparency and pre-coated silicone oil device to ensure the release of the sheet during the secondary processing.The thickness of the sheet is positioned by the dial gauge, and the winding is automatically tensioned.
◇ High efficient vacuum system keeps IV drop minor.No need Vacuum Drying Method:Conventional drying methods are prone to chemical changes (such as oxidation during the drying process), and the vacuum drying method can better maintain its original characteristics and reduce quality loss if using twin screw compound machine.
◇ Twin screw extruder melting system: better dispersion,clear and transportation sheet,suitable for more different types of materials.Of course, single screw can also be used.
◇ Ultra high pressure vacuum systemon twin screw extruder to make sure the best quality sheet.
◇ Movable three-roll calendering system/Automatic Tension Winding.
◇ Coated Silicone oil systemto remove the tooling easily when produce by injection machine.
◇ Optimized screw design avoids yellowing.
◇ More user-friendly and intelligent close-loop control.
How to extrude?
Dehumidifying drying crystallization system–Parallel twin screw extruder(raw material melt foaming plasticizing)—Quick Change Filter—Melt Pump—T-Die Mold—Three-Roll Calender—Cooling Device—Coated Silicone oil system—Trimming Device—Traction—Automatic Tension Winding
| Model | Motor(kw) | Output (kg/h) | Dia. Of Screw (mm) |
| MSM65 | 90 | 150~250 | 62.4 |
| MSM75 | 110 | 300~400 | 71.4 |
| MSM95 | 160 | 600~700 | 93 |
| MSM135 | 315 | 1300~1600 | 133 |
Plastic sheet machine is of Special Screw Type Designs, three-roll calendering method, turn-key project include formula.Door installation and commissioning.
