Hose Making Machine
What is Hose extruder?

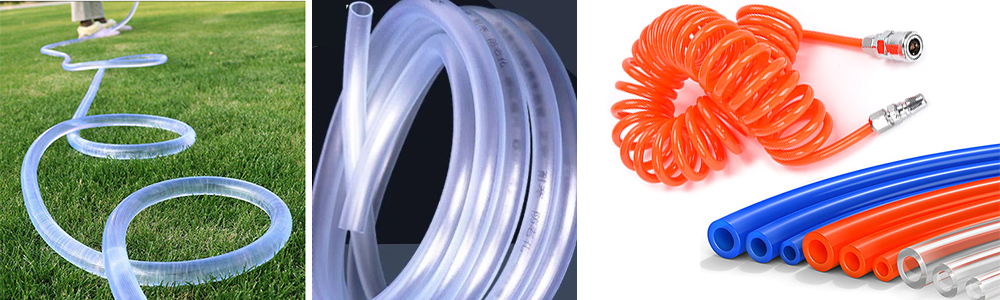

Hose Making Machine, product hose in industry. Therefore main use it for garden watering pipes, air compressor air pipes, oil ducts, material conveying pipes,wire protection hoses.

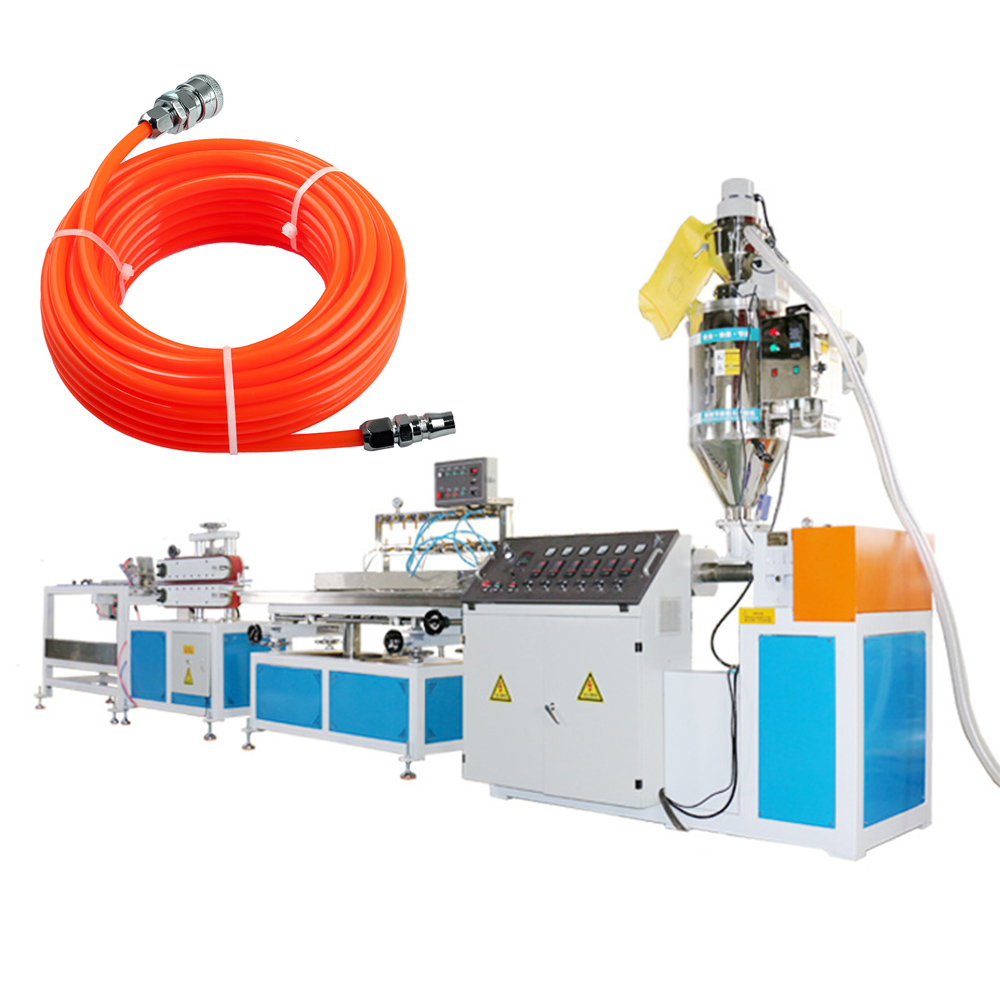

Hose production line
Advantage:
The PU (polyurethane) air hose extruder produced by the independently developed and manufactured PU tracheal extruder has excellent performance in high pressure resistance, vibration resistance, corrosion resistance, wear resistance, climate resistance, and bending resistance.
The PU pipe is lightweight, easy to use, flexible, and easy to lay, with high precision control of inner and outer diameter dimensions. Therefore use it in compressed air pipes, pneumatic components, liquid conveying pipes, protective sleeves, etc
Hose machine process
Drying hopper→Extruder→Mould→Water tank→Tractor machine→Winder
Hose extruder data
| Model | Power | Capacity | Screw diameter | Raw material |
| MHPU65 | 22Kw | 50Kg/h | 65mm | PU/PVC/PE/ect. |
PU Hose machine,about more
The PU extrusion screw adopts Japanese extrusion process optimization design, which can adapt well to PU materials with high thermal sensitivity, excellent fluidity, and high melt viscosity Processing, while ensuring good plasticization, to meet high-speed and stable output.
Provide greater melt pressure, improve pipe quality, and ensure smoother material resistance to extrusion, therefore adopting a “high-pressure volumetric” pipe die head.
Adopting a new concept of “automatic precise vacuum sizing” technology: the vacuum and water systems separate control,And the multi-level water balance control system is coordinated with the vacuum system to ensure stable vacuum, stable cooling water level, and stable water flow during the production process
Using the bidirectional high-speed scanning laser diameter measurement system.
it can achieve online monitoring of product diameter values, roundness values, and position values within the testing range. It can form a closed-loop control system with the traction machine. Automatically adjust product size fluctuations online, and ensure the qualified rate of finished products.
Drive traction machine by an up and down servo motor, providing precise and stable traction action.
The winding machine adopts a dedicated torque motor to provide constant tension for winding. Maintaining no tension deformation of the hose, and has automatic length calculation function.
Can custom size coil diameter according to customer requirements.
Other name: air hose extruder,Air compressor pipe machine
