Plastic Mixer
About plastic mixer, In plastics, rubber, dyes, food, daily chemicals and other industries, use it for a variety of materials mixing, stirring, drying, coloring.
Plastic mixer application
Plastic mixer is suitable for mixing and stirring of powder/particle/additive/toner/masterbatch/plastic and other materials.
Therefore, Mainly use high speed mixer for: polyvinyl chloride resin mixing, coloring, drying polyethylene, polypropylene particles, ABS polycarbonate.
And other moisture absorbent resin drying before processing, phenolic resin mixing and other processes.
So, the barrel body adopts the circular arc structure, and the special blade structure is mainly used to make the material form a whirlpool of high-speed stirring and heating modification.
Plastic high speed mixer data
| Model | Volume (L) | Power (Kw) | Size (m) |
| MHR5 | 3 | 2.2 | 1.2*0.3*0.8 |
| MHR10 | 7 | 2.2 | 1.2*0.3*0.85 |
| MHR50 | 35 | 11 | 2.1*0.7*1.1 |
| MHR100 | 75 | 22 | 2.1*0.8*1.5 |
| MHR200 | 150 | 45 | 2.4*0.85*1.6 |
| MHR300 | 225 | 55 | 2.8*1.1*1.7 |
| MHR500 | 375 | 75 | 3.1*1.2*1.7 |
| MHR800 | 600 | 132 | 3.4*1.4*2.8 |
| MHR1000 | 800 | 160 | 3.5*1.5*2.9 |

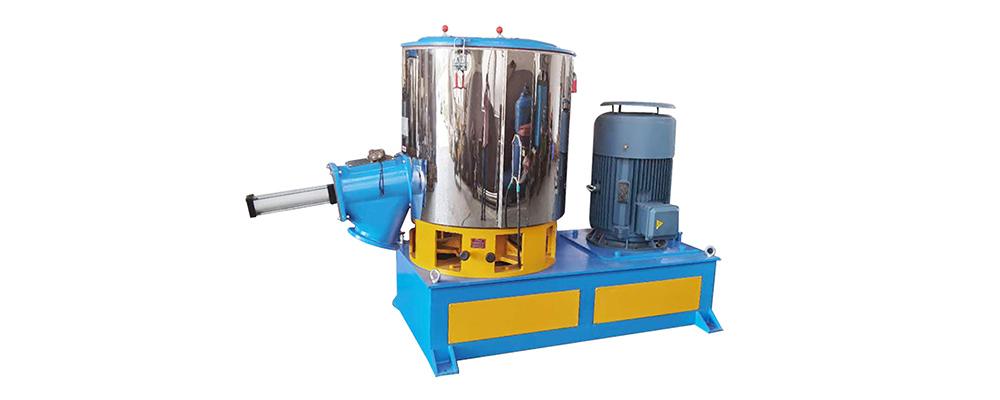

Plastic mixing machine
Plastic mixing machine is one of the necessary equipment for plastic processing plants.
And has a wide range of uses in rubber, pharmaceutical, dyeing and other industries.
The main shaft is directly driven to rotate by the electric motor through the belt pulley and gearbox.
And the rotating blades with special shapes installed on the main shaft rotate accordingly.
Under the action of centrifugal force, the material rises along the conical wall of the fixed mixing tank and is in a state of rotational motion, forming a swirling movement.
For materials with different densities,it is easy to mix evenly in a short time, and the mixing efficiency is more than twice that of the general mixer.
Input through the upper inlet, then,discharge the mixed material through the side discharge port of the mixing tank. To meet the mixing requirements of some materials.
The equipment have thermal sleeve to cool, heat and keep the material warm.
Our advantage
1.Fast mixing and uniform mixture.
2.It is beneficial to the absorption of the resin to the additive and help the material stability.
3.The machine is easy to operate and clean.
4.Durable, compact structure, long service life.
5.Online consultation service: 7*12h
Tag:high Speed mixer/ PVC mixer/ Plastic mixer/ Resin mixer/ Color masterbatch mixer/ Plastic powder mixer
