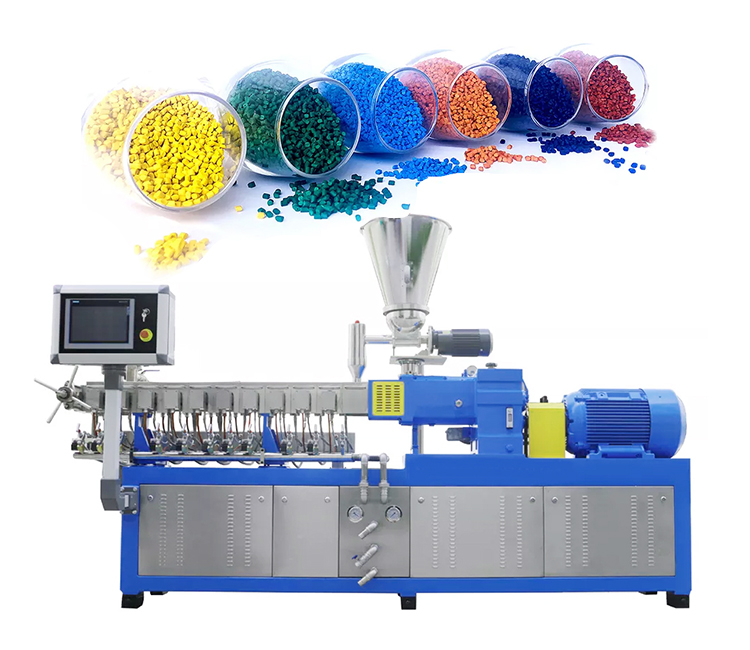

Color Masterbatch Machine
MQ is a professional twin screw color masterbatch machine manufacturer and have 15 years of experience.
Mono color masterbatch or SPC (single pigment concentrate), Tailor-Made masterbatch, Custom masterbatch. MQ have enough experience to help you product high quality color masterbatch.
How to choose the color masterbatch machine?
Some problems encountered for the new masterbatch factory:
1.The problem of dispersion, uneven color, about toner and raw materials.
2.The choice of mixing machine, how to mix efficiently.
3.The difference between organic and inorganic masterbatches.
4.The cost of ordinary toner/pigment and high temperature toner.
5.How to increase production capacity.
6.How to effectively create your own color card.
| Model | Diameter(mm) | L/D | Power(kw) | Output(kg/h) |
| MT36 | 35.6 | 38~60 :1 | 22 | 70~120 |
| MT50 | 50.5 | 38~60 :1 | 75 | 180~250 |
| MT65 | 62.4 | 38~60:1 | 90 | 250~400 |
| MT75 | 71 | 38~60:1 | 132 | 500~700 |
| MT95 | 91 | 38~60:1 | 250 | 900~1300 |
The common color masterbatch raw material is PP / PE / PET, better options for pelleting system are water ring or water strand. Of these, the cost of water will be lower.In the choice of extruder, small and medium-sized output extruder is the most popular, and also the most practical. Different raw materials or formulations, different machine selection.
Of course, ABS/ PA nylon and other raw material, need more precise extruders and high temperature controls. So, Higher temperature raw materials require high temperature toner.
The pigment has better dispersibility in the product. SO, In the production process, the pigment must be refined to improve the dispersibility and coloring power of the pigment. The carrier of the special color master is the same as the plastic of the product, and has good matching. After heating and melting, the pigment particles can be well dispersed in the plastic of the product.
In the production process, it will also match with other machines. For example,spiral load feeder;lose-in-weight feeder; side feeder; mixer machine and so on. Therefore, need to combine the cost of investment.
Our advantage
1. The dispersion uniform and the quality is stable.
2. Efficient plasticizing and compounding.
3. High production efficiency, high output.
4. Simple operation, high degree of automation.
5. Support installation in other countries and online service 7*12hours
